    Drop in Isolator 0.6 ~ 5.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
      (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0119190617698

    617 ~ 698

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o0119190703803

    703 ~ 803

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o0119190824894

    824 ~ 894

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o0119190860960

    860 ~ 960

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o0119190925960

    925 ~ 960

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919010701210

    1070 ~ 1210

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o011919012001400

    1200 ~ 1400

    22

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919012501450

    1250 ~ 1450

    23

    1.2

    0.25

    TAB

    -40 ~ +85

    5o011919014501550

    1450 ~ 1550

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919015001700

    1500 ~ 1700

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919017102170

    1710 ~ 2170

    16

    1.4

    0.6

    TAB

    -40 ~ +85

    5o011919018051880

    1805 ~ 1880

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o011919019201990

    1920 ~ 1990

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o011919020002400

    2000 ~ 2400

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o011919021102170

    2110 ~ 2170

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o011919023002500

    2300 ~ 2500

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919024002600

    2400 ~ 2600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919024962690

    2496 ~ 2690

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919025002700

    2500 ~ 2700

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919027003100

    2700 ~ 3100

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919027003500

    2700 ~ 3500

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o011919031503250

    3150 ~ 3250

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o011919033003600

    3300 ~ 3600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919035004500

    3500 ~ 4500

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o011919036003800

    3600 ~ 3800

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919039004200

    3900 ~ 4200

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o011919039004500

    3900 ~ 4500

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o011919040004500

    4000 ~ 4500

    20

    1.2

    0.35

    TAB

    -40 ~ +85

    5o011919042004700

    4200 ~ 4700

    20

    1.25

    0.35

    TAB

    -40 ~ +85

    5o011919044005000

    4400 ~ 5000

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    19*19*8.6mm

    Forward Power

    100W

    Reverse Power

    30W

    Connector Type

    TAB

    Storage Temperature

    -40℃~+125℃

    Impedance

    50Ω

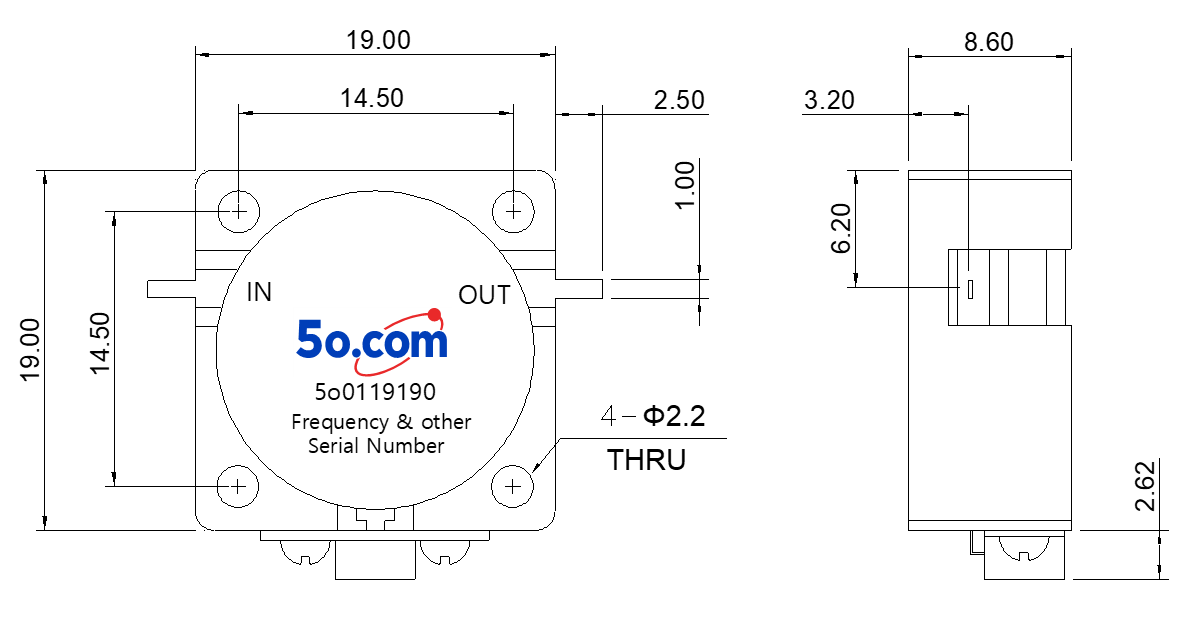

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
