    Coaxial Isolator 40.0 ~ 50.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
      Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    5o0043370404524K

    40.0   ~ 45.0

    Typ   15
      Min 14

    Typ   1.5
      Max 1.6

    Typ 1.3
      Max 1.6

    2.4mm Female

    5o0043370404524J24K

    40.0   ~ 45.0

    Typ 15
      Min 14

    Typ   1.5
      Max 1.6

    Typ 1.3
      Max 1.6

    2.4mm Male   to 2.4mm Female

    5o0043370455024K

    45.0   ~ 50.0

    Typ 15
      Min 12

    Typ   1.5
      Max 1.8

    Typ 0.8
      Max 1.3

    2.4mm Female

    5o0043370455024J24K

    45.0   ~ 50.0

    Typ 15
      Min 12

    Typ   1.5
      Max 1.8

    Typ 0.8
      Max 1.3

    2.4mm Male   to 2.4 Female

    Basic Specifications

    Dimension

    43*37*20mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating Temperature

    -40 ~+85℃

    Reverse Power

    1W

    Storage Temperature

    -55 ~+125℃

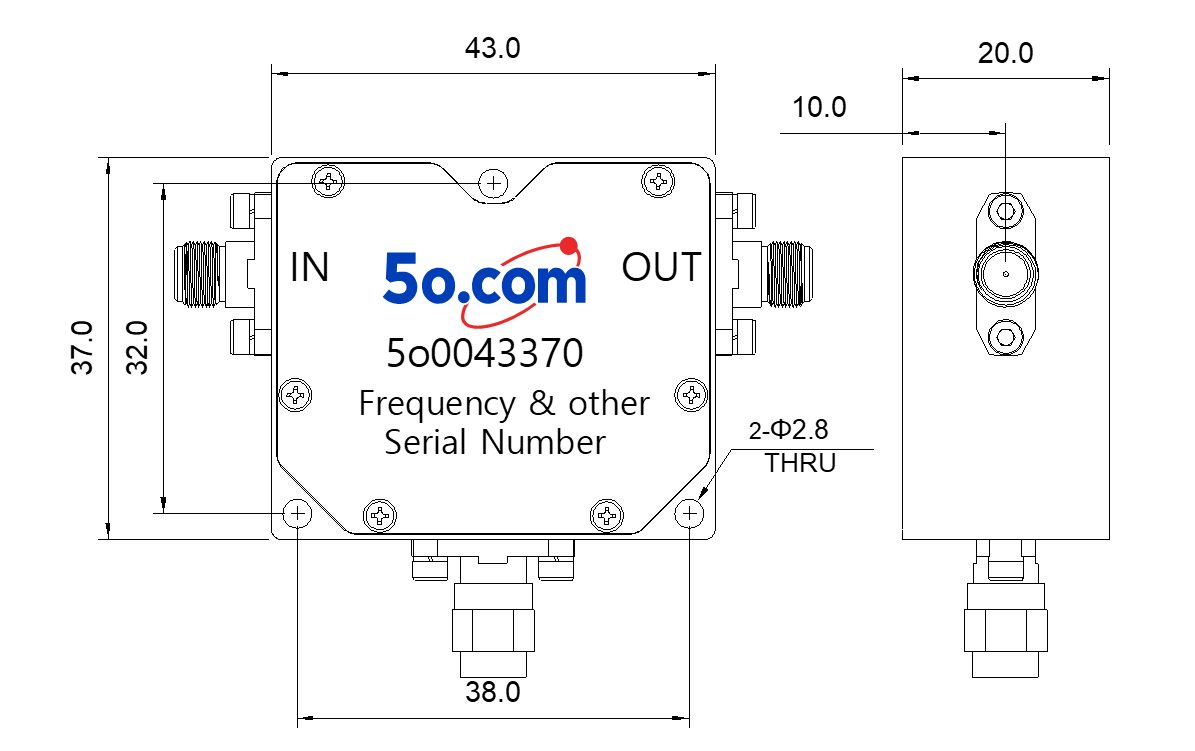

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (2.4mm Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
