    Coaxial Isolator 1.7 ~ 3.5GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.



    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    5o00404001735SK

    1.7 ~ 3.5

    17

    1.4

    0.7

    SMA Female

    5o00404001735NK

    1.7 ~ 3.5

    17

    1.4

    0.7

    N Female

    Basic Specifications

    Dimension

    40*40*20mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    0 ~ +70℃

    Reverse Power

    30W

    Storage Temperature

    -55 ~+125℃

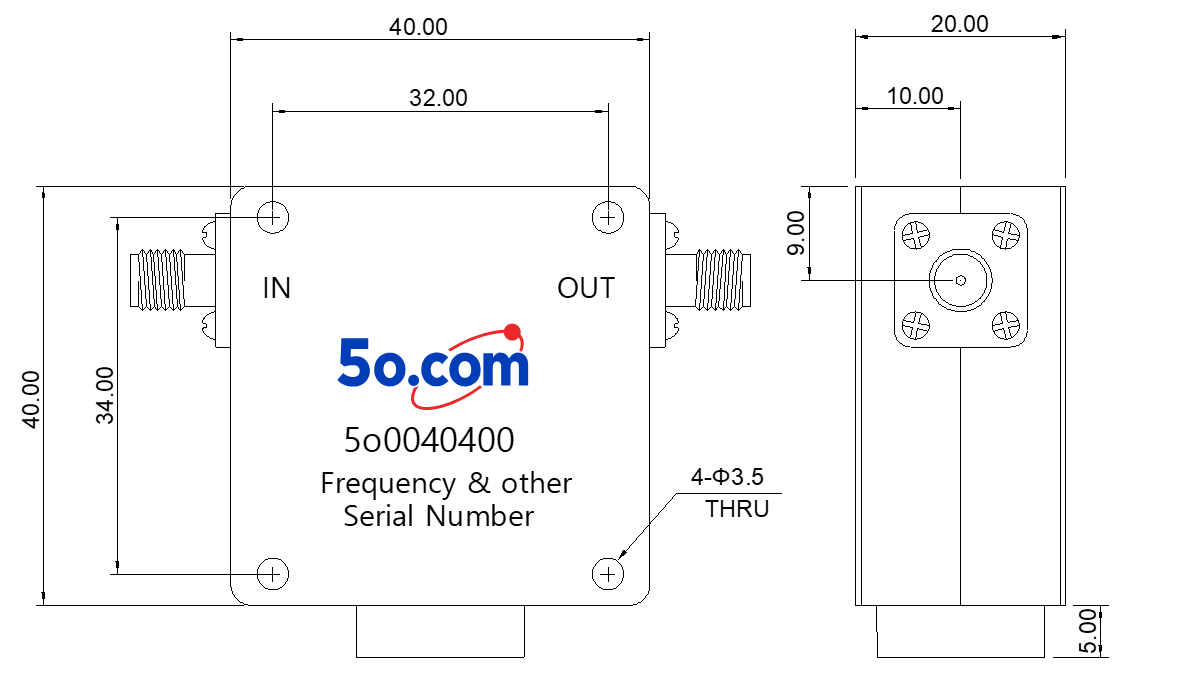

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
