Part Number

Frequency Range
(MHz)

Isolation
Min(dB)

VSWR
Max

Insertion Loss
Max(dB)

Connector

Type

Temp.(°C)

5o0034340700900SK

700   ~ 900

20

1.25

0.4

SMA Female

-30   ~ +70

5o00343408001000NK

800   ~ 1000

22

1.2

0.3

N Female

-30   ~ +70

5o00343408501150SJSK

850   ~ 1150

18

1.3

0.6

SMA Male   to SMA Female

-30   ~ +70

5o0034340860960SK

860   ~ 960

23

1.2

0.25

SMA Female

-30   ~ +70

5o00343409001200SK

900   ~ 1200

20

1.25

0.5

SMA Female

-30   ~ +70

5o00343409001300SK

900   ~ 1300

18

1.3

0.6

SMA Female

-30   ~ +70

5o00343409501415SK

950   ~ 1415

18

1.4

0.6

SMA Female

0   ~ +60

5o00343409501450SK

950   ~ 1450

16

1.4

0.6

SMA Female

0   ~ +60

5o00343409601215NK

960   ~ 1215

20

1.25

0.3

N Female

-30   ~ +70

5o00343409601260SK

960   ~ 1260

18

1.3

0.3

SMA Female

-30   ~ +70

5o003434010001500SK

1000   ~ 1500

16

1.4

0.6

SMA Female

0   ~ +60

5o003434012251875SK

1225   ~ 1875

16

1.4

0.6

SMA Female

0   ~ +60

5o003434012901710SK

1290   ~ 1710

20

1.25

0.5

SMA Female

-40   ~ +85

5o003434013001740SK

1300   ~ 1740

20

1.25

0.5

SMA Female

-40   ~ +85

5o003434013001800SK

1300   ~ 1800

18

1.3

0.5

SMA Female

-40   ~ +85

5o003434013501850SK

1350   ~ 1850

18

1.3

0.5

SMA Female

-40   ~ +85

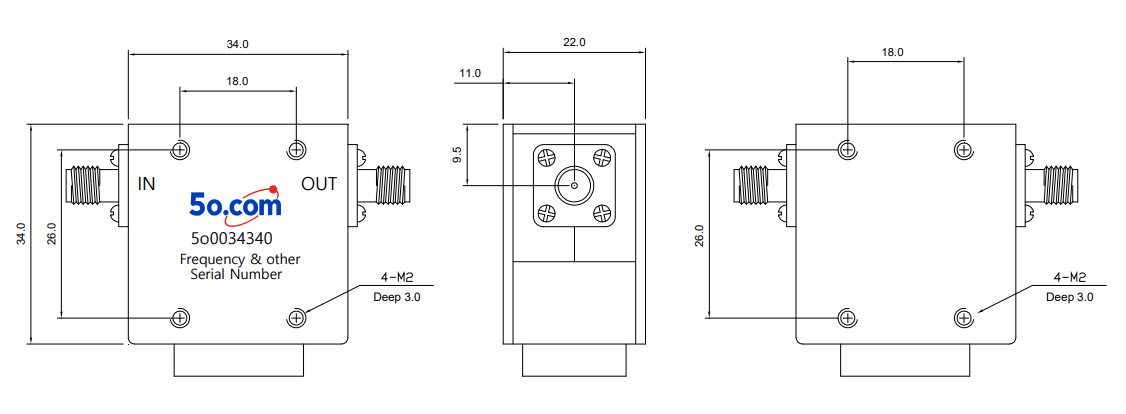

Dimension

34*34*22mm

Forward Power

100W

Reverse Power

30W

Connector Type

SMA(Male/Female), N(Male/Female)

Storage Temperature

-55℃~+125℃

Impedance

50Ω
