    Coaxial Isolator 8.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.




    RF Characteristics

    Part Number

    Frequency Range
    (    GHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    5o0016211818SJSK

    8.0 ~ 18.0

    16

    1.45

    0.8

    SMA Male to SMA Female

    5o0016211818SK

    8.0 ~ 18.0

    16

    1.45

    0.8

    SMA Female



    Basic Specifications

    Dimension

    16*21.5*14mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating Temperature

    -30 ~ +70℃

    Reverse Power

    10W

    Storage Temperature

    -55 ~ +125℃

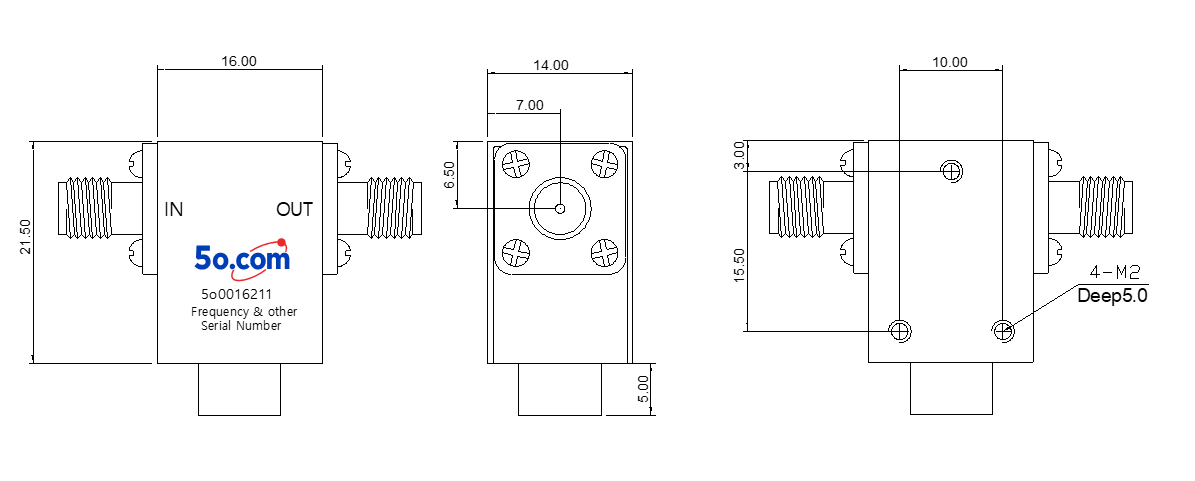

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
