    Coaxial Isolator 18.0 ~ 28.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.


    RF Characteristics

    Part Number

    Frequency Range
         (GHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o001025018265KK

    18.0 ~   26.5

    20

    1.3

    0.7

    2.92mm Female

    -55 ~ +85

    5o00102502328KK

    23.0 ~   28.0

    20

    1.3

    0.9

    2.92mm Female

    -55 ~ +85

    Basic Specifications

    Dimension

    10.2*25.6*12.5mm

    Impedance

    50Ω

    Forward Power

    10W

    Connector Type

    2.92mm(Female/Male)

    Reverse Power

    2W

    Storage Temperature

    -55~+125℃

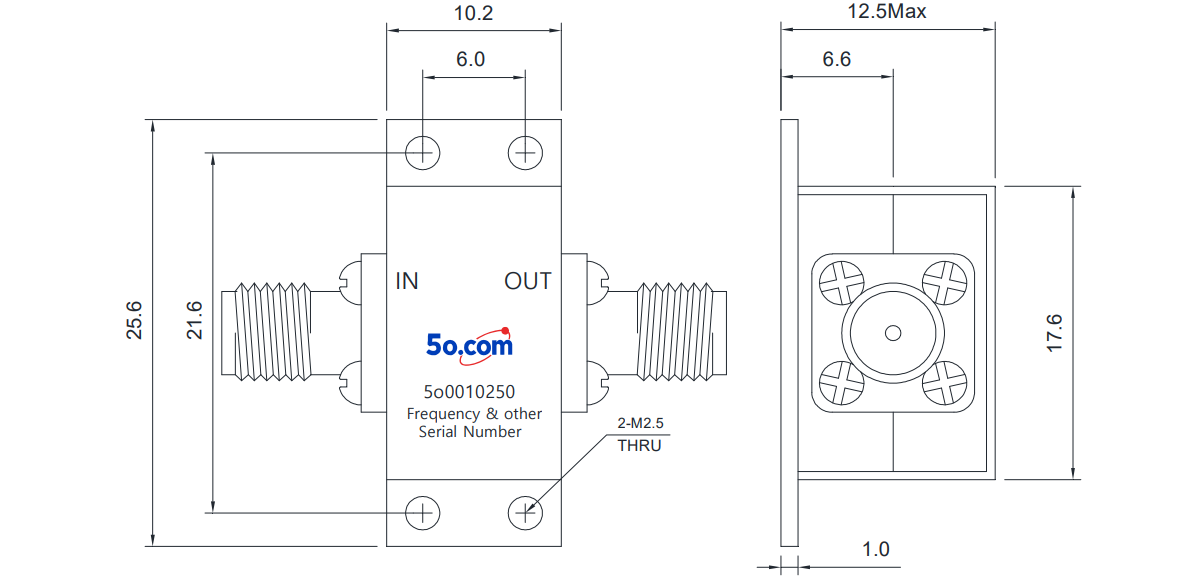

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (2.92mm Male/Female)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
