WR28 (BJ320) 26.5-40.0 GHz Waveguide to Coaxial Adapter

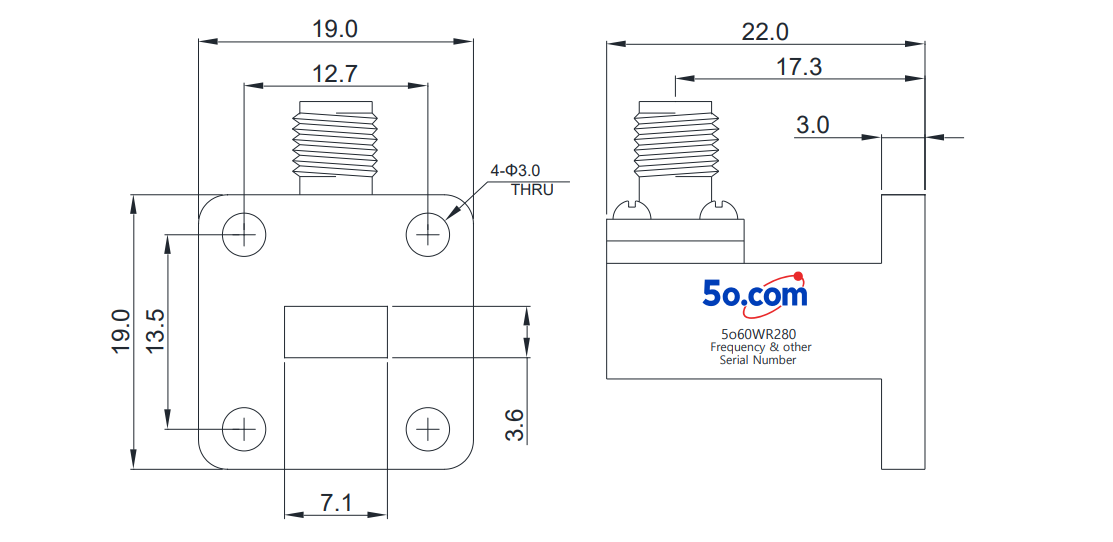

5o60WR280，Bridge to the Future: Precision 26.5-40.0 GHz Adapter for Ka-Band Systems

Step into the high-frequency frontier with our advanced Waveguide to Coaxial Adapter, engineered for the demanding 26.5 to 40.0 GHz (Ka-Band) spectrum. This critical interface component delivers exceptional performance where it matters most, enabling seamless integration between waveguide and coaxial systems in next-generation applications.

This adapter is vital across multiple sectors. It serves as a key component in 5G millimeter-wave deployments and the developing 6G ecosystem, high-resolution military and defense radar and electronic warfare systems, and high-data-rate satellite communications. It also enables advanced commercial and civilian applications, including automotive radar R&D and sophisticated test and measurement instrumentation

Product Highlights:

Broadband Performance: Covers the full 26.5 – 40.0 GHz range.

Precision Interfaces: Equipped with a WR28 (BJ320) waveguide flange and your choice of a low-loss 2.92mm or 2.4mm coaxial connector (Male/Female).

Signal Integrity: Guarantees a low Voltage Standing Wave Ratio (VSWR) of 1.25, minimizing reflections.

Maximum Efficiency: Features an ultra-low insertion loss of just 0.25dB, ensuring optimal power transfer.

Empower your high-frequency designs with unmatched reliability. Our adapter is the trusted solution for pushing the boundaries of speed and connectivity.

Application

Testing and measuring equipment.

Radar and communication systems.

Satellite and wireless communication.

Compact wiring scenario.

Datasheet
