700 to 2000MHz Coaxial Circulator

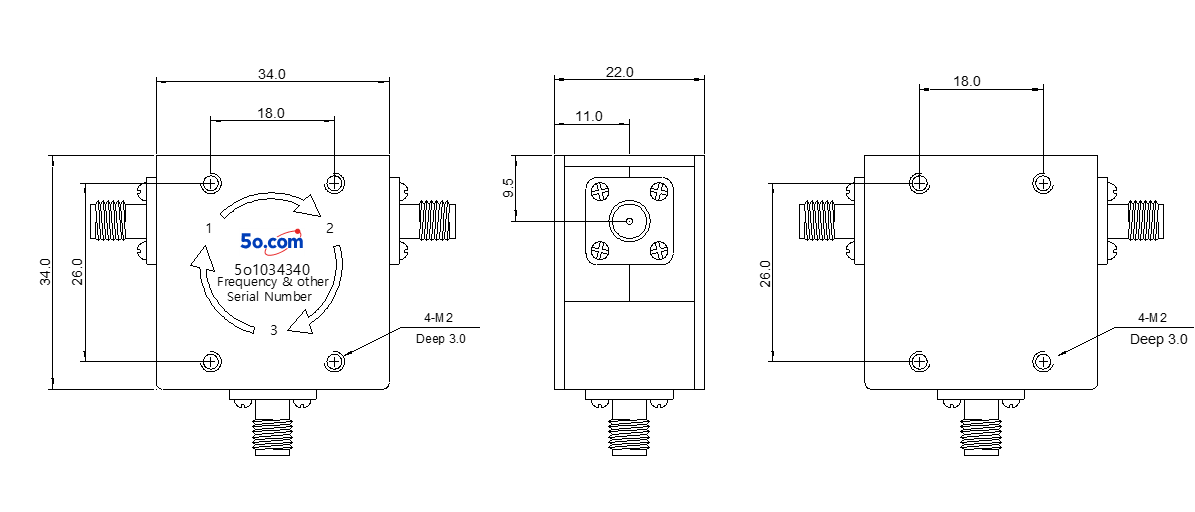

Part Number 5o1034340 Coaxial Circulator: Superior Protection for Critical Communications

In today’s dense RF environment, protecting sensitive equipment from interference and damage is paramount. Our 700-2000MHz Coaxial Circulator delivers exceptional performance across this crucial frequency range, making it the ideal solution for applications where reliability cannot be compromised. This high-performance component ensures optimal signal integrity while providing robust protection for your most valuable system components.

Detailed Applications:

Wireless Infrastructure: Protects power amplifiers in 4G/LTE and 5NR base stations from antenna mismatch and VSWR spikes, ensuring uninterrupted cellular service.

Public Safety Systems: Provides critical transmitter/receiver isolation in emergency communication networks, police and fire department radios operating in 700-800MHz bands.

Military Communications: Safeguards transceivers in tactical radio systems (138-525MHz, 1350-1850MHz) and SATCOM terminals against damage in demanding field environments.

Broadcast Systems: Prevents damage to high-power FM radio (88-108MHz) and television broadcast amplifiers from antenna icing or connector corrosion.

Test & Measurement: Serves as essential protection for signal generators and power amplifiers during RF component testing and production line validation.

Product Features:

Frequency Range: 700 – 2000MHz

High Isolation: Minimum 20dB between ports

Excellent Matching: Maximum VSWR of 1.3

Low Insertion Loss: Maximum 0.2dB

Power Handling: 100W forward and reverse power

Connector Options: SMA or N-type available

 With outstanding 20dB isolation and remarkably low 0.2dB insertion loss, our circulator maintains signal quality while providing robust circuit protection. The 100W power rating ensures reliability in high-power transmission scenarios, while multiple connector options offer flexible integration into existing systems.

Trust our 700-2000MHz Coaxial Circulator to protect your critical RF investments. Contact us today to discuss how this component can enhance the reliability and performance of your communication systems.

Datasheet
