6.0 to 27.5 GHz Coaxial Isolator

5o0013180,Pushing the Boundaries: The Advanced 6.0 to 27.5 GHz Coaxial Isolator

The relentless drive for higher data rates and more sophisticated electronic systems is pushing operational frequencies into the millimeter-wave (mmWave) spectrum. At the heart of these advanced systems, components like the

6.0 to 27.5 GHz Coaxial Isolator are critical for ensuring signal integrity and system stability. Here’s a look at the technology and applications defining this component’s future.

1.latest R&D Trends for 2025

Research and development in this broad frequency band are focused on overcoming the inherent challenges of mmWave design. The latest advancements for 2025 include: Advanced Ferrite Materials: Developing new temperature-stable, low-loss ferrite compounds is crucial for maintaining performance across the entire 6.0 to 27.5 GHz range, especially under varying environmental conditions.

Multi-Layer and LTCC Designs: Using Low-Temperature Co-fired Ceramic (LTCC) and multi-layer integration allows for more compact, robust, and broadband isolators that can be seamlessly integrated into MMICs (Monolithic Microwave Integrated Circuits).

AI-Optimized Electromagnetic Modeling: Engineers are increasingly using AI-driven simulation tools to optimize magnetic circuit design and port transitions, minimizing discontinuities and achieving ultra-wideband performance in a smaller footprint.

2. Key Application Fields

This exceptionally wide frequency band unlocks potential across military, commercial, and civilian sectors:

Military & Aerospace: Essential for radar systems (including airborne and naval radar), electronic warfare (EW) jamming and countermeasures, and secure satellite communications (SATCOM) terminals.

Commercial & Telecommunications: A vital component in 5G millimeter-wave base stations, point-to-point backhaul links, and the evolving infrastructure for 6G networks. It is also used in test and measurement equipment.

Civilian & Industrial: Applied in high-resolution industrial sensors, scientific instrumentation, and advanced automotive radars for next-generation autonomous driving systems.

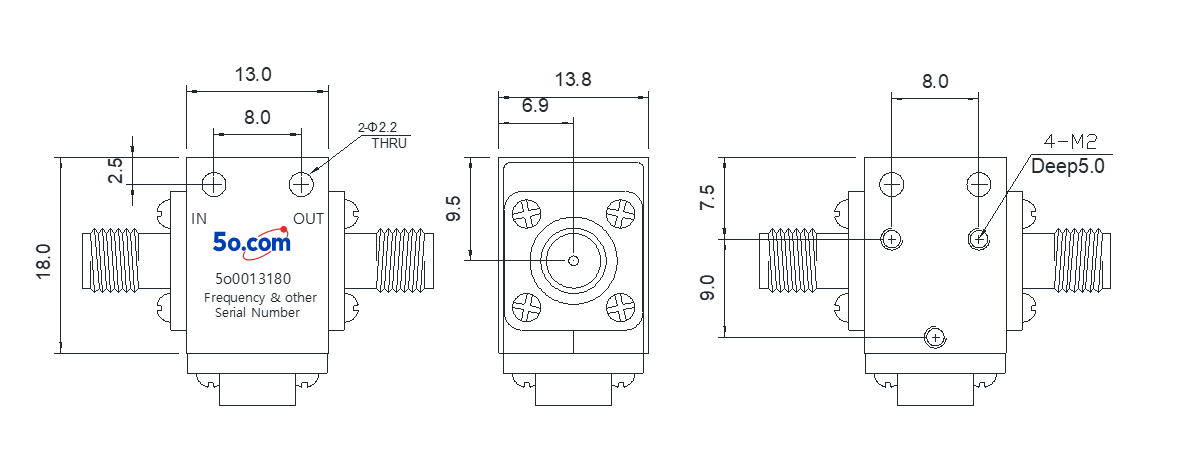

Our latest 6.0 to 27.5 GHz coaxial isolator 5o0013180 is designed to meet the stringent demands of modern systems, offering:

High Isolation up to 20dB:

Provides excellent protection for sensitive amplifiers and oscillators from reflected power, ensuring system stability and longevity.

Low VSWR of 1.2:

Minimizes signal reflections at the port, guaranteeing maximum power transfer and superior signal quality across the entire band.

Reduced Insertion Loss by 0.3dB:

Our design optimizations have significantly lowered insertion loss, resulting in improved system efficiency and enhanced signal-to-noise ratio.

This combination of wide bandwidth, high isolation, and low loss makes our coaxial isolator an ideal solution for protecting critical components in the most demanding high-frequency applications.

Datasheet
