5o21203N 2W 3GHz Coaxial Termination

Coaxial Termination is a fundamental passive component in RF (Radio F

Coaxial Termination is a fundamental passive component in RF (Radio Frequency) and microwave systems. Its primary purpose is to absorb and dissipate RF energy without causing any signal reflection.

Think of it as a “dummy load” or an “electrical shock absorber” for coaxial cables. In simple terms, it is a perfect, matched resistor at the end of a transmission line.

Key Specifications

1.3GHz (Frequency Range):

oThis indicates that the termination is designed to operate effectively up to a frequency of 3 Gigahertz.

oWithin this range, it maintains a near-perfect 50-ohm impedance (the standard for most RF systems). This is measured by its Very Low Voltage Standing Wave Ratio (VSWR), typically 1.2 or better. A low VSWR means almost all incoming RF power is absorbed, with minimal power reflected back towards the source.

2.2W (Power Rating):

oThis is the average power handling capability. It means the termination can safely and continuously dissipate 2 Watts of RF power as heat without being damaged or significantly changing its performance.

Product Features:

Broadband performance from DC to 6GHz

Excellent VSWR, as low as 1.15

Power handling up to 2W

50-ohm impedance matching

N-type connector interface

Compact and robust design

Optional air-cooling for enhanced heat dissipation

Application Areas:

Wireless communication systems

Radar and satellite systems

Test and measurement equipment

Harmonic suppression circuits

Electronic countermeasures (ECM)

RF laboratory and R&D applications

Preventing Signal Reflection

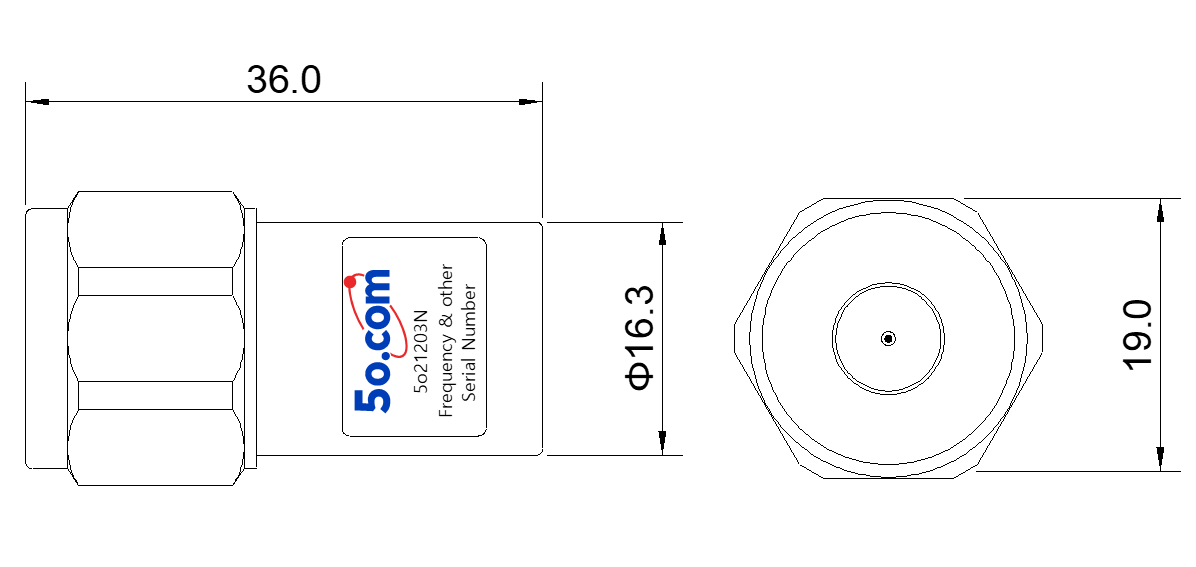

Datasheet
