    2 to 8GHz 2-Way Power Divider: The "Precision Signal Distributor" for Broadband RF Systems

    In wireless communication, test and measurement, and radar systems, how can a single RF signal be efficiently and accurately "split" into two paths? The 2-8GHz 2-Way Power Divider plays this critical role as a passive component. Not only does it achieve equal power distribution, but its wide bandwidth and low-loss characteristics also make it an indispensable fundamental component in modern RF links.




    Core Product Positioning: Wideband Coverage, Multi-Scenario Compatibility

    This 2-Way (1-in, 2-out) power divider is specifically designed for the 2-8GHz frequency band, covering the core microwave spectrum from S-band to C-band. Its core value lies in its versatility—a single device can meet frequency requirements that would otherwise require multiple narrowband components, greatly simplifying system design complexity.




    Typical Application Scenarios:

    • Communication Base Stations: Distributes a single signal to dual-polarized antennas or multi-channel receivers.

    • RF Testing: Splits a signal source into two paths in the lab for simultaneous measurement by a spectrum analyzer and a power meter.

    • Wi-Fi/5G Device R&D:  Supports signal splitting/combining tests for 2.4GHz, 5GHz, and higher frequency bands.

    • Radar & Satellite Communication: Serves as a critical node in the front-end signal distribution network.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o312828328SK

    2.0 ~ 8.0

    20

    1.3

    1.3

    0.7(Split 3dB)

    ±4˚

    ±0.3dB

    SMA Female

    Basic Specifications

    Dimension

    28*28*10mm

    Impedance

    50Ω

    Splitter Power

    30W

    Operating Temperature

    -55 ~ +85℃

    Combiner Power

    3W

    Storage Temperature

    -55~+125℃

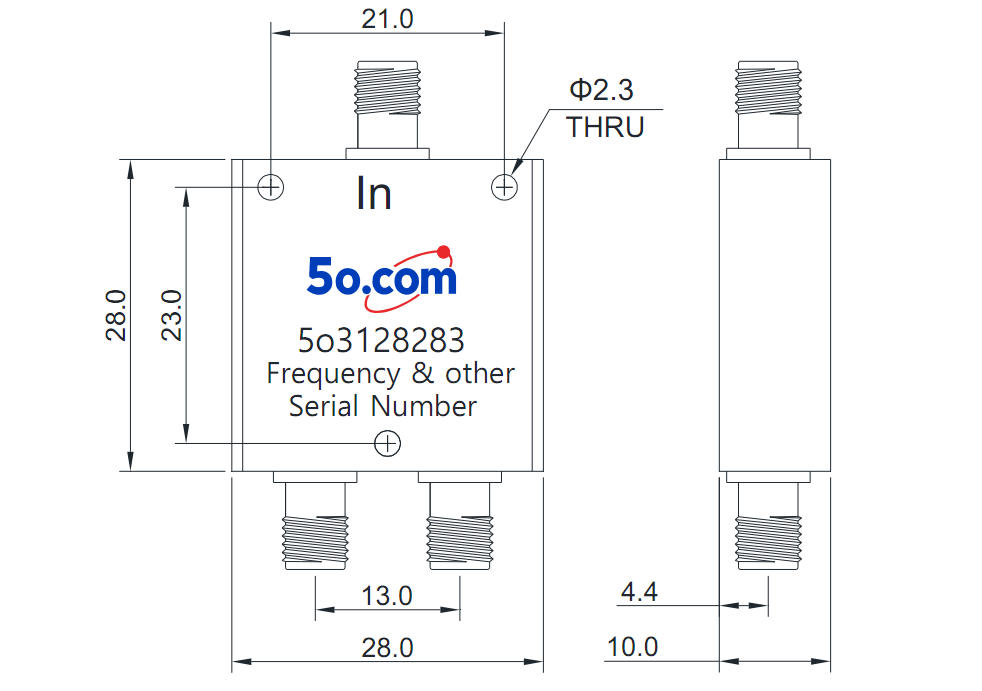

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)



    Selection and Usage Guidelines

    • Verify Connectors: Confirm the interface type on your equipment (commonly SMA female) and use high-quality RF cables to minimize overall system insertion loss.

    • Power Handling: While it supports over 10W, avoid prolonged input overload to prevent overheating and damage to the internal resistors.

    • Customization Services: If the standard 2-8GHz model does not meet specific frequency points (e.g.,  certain 5G bands) or phase requirements, customized designs are available.



    Conclusion

    Whether building communication links or setting up test platforms, a stable 2–8 GHz 2-way power divider is a “valuable asset” for RF systems. Its wide bandwidth and low insertion loss make signal distribution simple and reliable.
