14.5 – 22.0 GHz Waveguide to Coaxial Adapter

5o60WR514,Unlock Peak Performance in K-Band with Our Precision Adapter

Navigate the critical K-Band spectrum (14.5 to 22.0 GHz) with unparalleled efficiency using our high-performance Waveguide to Coaxial Adapter. This essential component is engineered to bridge the gap between waveguide and coaxial systems, ensuring seamless signal integrity for the most demanding applications.

Designed for versatility, this adapter is indispensable across a wide range of fields. It is critical for 5G and future 6G backhaul and test systems, advanced military and defense electronics like radar and EW systems, and high-resolution satellite communications. Furthermore, it serves commercial and civilian uses in scientific instrumentation and aerospace testing.

Product Highlights:

Broad Frequency Range: 14.5 – 22.0 GHz.

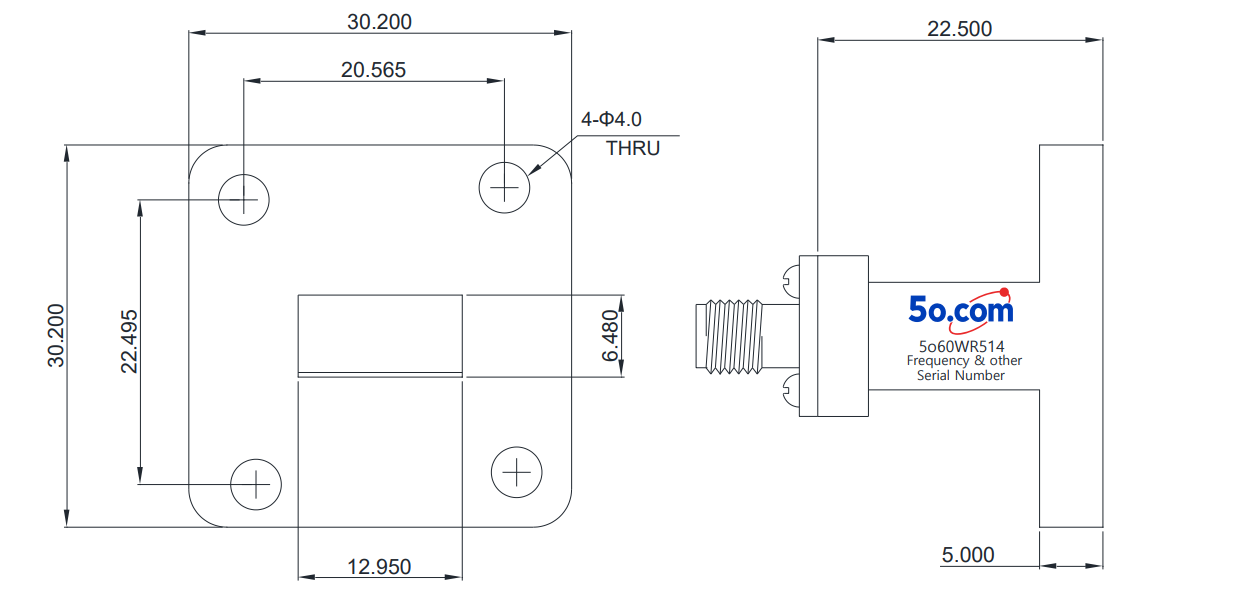

Superior Interfaces: Features a WR51 (BJ180) waveguide flange and your choice of a precision SMA-Female or 2.92mm-female coaxial connector.

Exceptional Electrical Performance: Achieves a low Voltage Standing Wave Ratio (VSWR) of 1.2 for minimal signal reflection.

Maximum Signal Power: Insertion loss is reduced by an ultra-low 0.25dB, preserving valuable signal strength.

Ensure your systems operate at their peak. Choose the adapter that delivers proven reliability and precision for the connected future.

Application

Satellite communication systems

Radar and defense systems

Test and measurement equipment

Microwave radio links

Aerospace and aviation electronics

RF research and development

Datasheet
