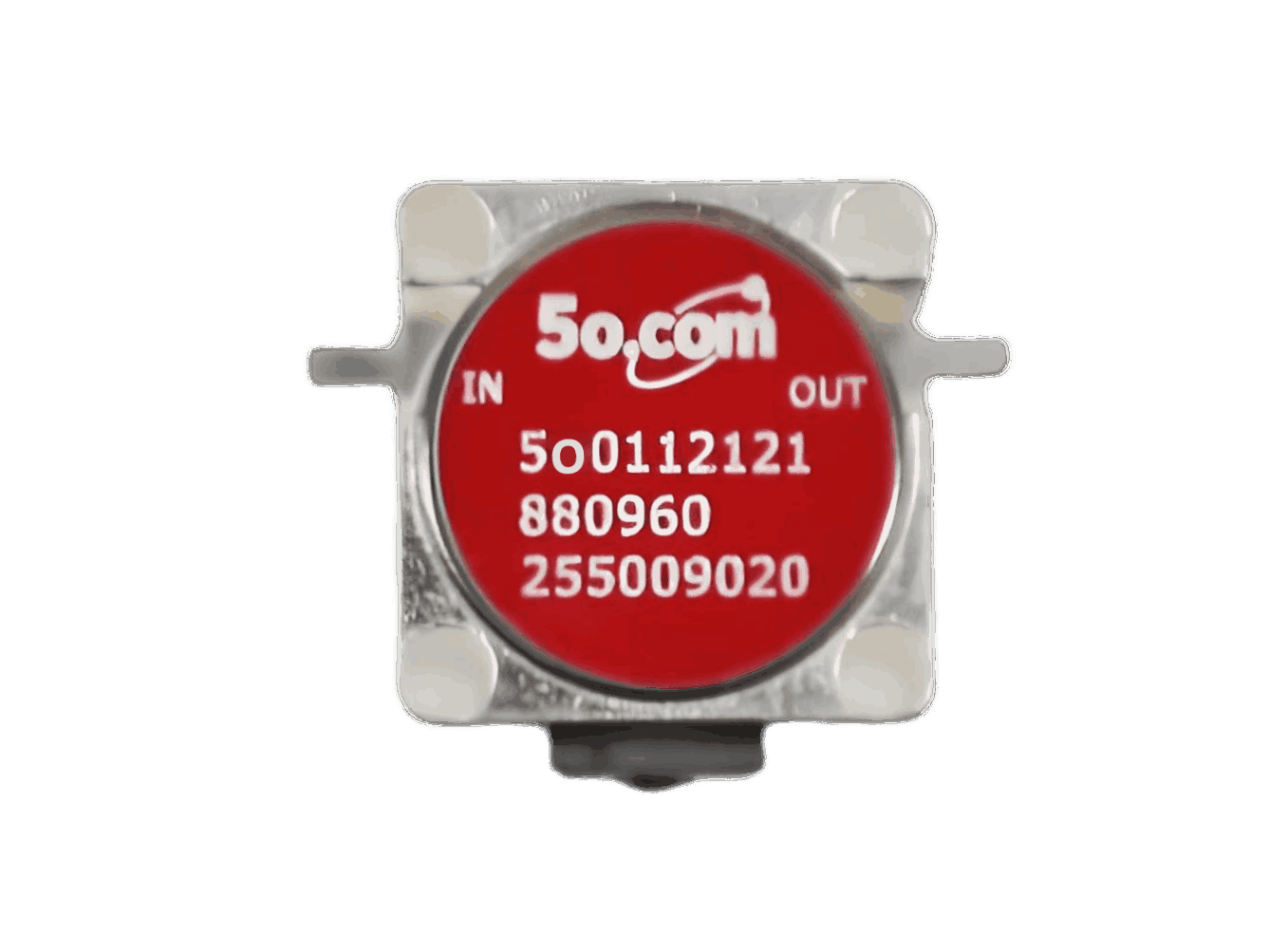

0.7–6.0GHz Drop-in Isolator

5o0112121,Reliable Signal Protection for Modern Wireless Systems

In today’s increasingly complex RF environment, maintaining signal integrity and protecting sensitive components from interference is essential. The 0.7–6.0GHz Drop-in Isolator delivers robust performance across this wide frequency band, making it an ideal solution for systems requiring high isolation and minimal signal loss. With up to 23dB of isolation and insertion loss as low as 0.3dB, this isolator effectively suppresses reflected power, enhances transmitter stability, and improves antenna matching by maintaining a low VSWR of 1.2. These characteristics ensure reliable signal transmission, reduce interference, and extend the lifespan of power amplifiers and other RF components.

Application Areas

This versatile isolator is engineered to meet the demands of various high-performance applications:

Wireless Infrastructure: Protects power amplifiers in 4G/LTE and 5G base stations from antenna mismatch and load variations.

Satellite Communications: Ensures signal integrity in both uplink and downlink systems operating within Ku- and C-band frequencies.

Military & Radar Systems: Provides critical isolation in tactical radios, radar, and electronic warfare equipment.

Public Safety Networks: Supports reliable operation in emergency communication systems.

Test & Measurement: Safeguards signal sources and analyzers during RF testing and validation.

Key Product Features

Broad Frequency Range: 0.7–6.0GHz, covering multiple communication and radar bands

High Isolation: Up to 23dB minimizes signal leakage and feedback

Low Insertion Loss: As low as 0.3dB preserves system gain and efficiency

Excellent VSWR: ≤1.2 ensures optimal power transfer and impedance matching

Compact Drop-in Design: Easy integration into PCB-based systems

Rugged Construction: Operates across -40°C to +85°C for harsh environments

Summary

The 5o0112121 0.7–6.0GHz Drop-in Isolator combines wide bandwidth, high isolation, and low loss to deliver unmatched performance in modern RF systems. Its ability to operate across such a broad frequency range makes it indispensable for mobile communications, satellite links, microwave relay, and radar applications. By integrating this isolator, designers can enhance system reliability, reduce maintenance costs, and ensure consistent performance—making it a vital component for next-generation wireless and defense systems.
